| CHARACTERISTIC | VALUE |
| Type | SC |
| Net weight | 13.45 Kg |
| Application energy level | Standard LBP compressor |
| Applications | LBP |
| Approval standards | CE |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 14.1 |
| Base plate type | Universal |
| Capacity of capacitor A | 10 |
| Capacity of capacitor B | 80 uF |
| Cut in current HST [A] | 18.6 |
| Discharge connection angle [°] | 37 |
| Discharge connection comments | Al-cap |
| Discharge connection diameter [mm] | 6.2 |
| Discharge connection material | Cu-plated steel |
| Drawing number | 8257 |
| Free gas volume [cm3] | 1460 |
| Gross weight | 13.45 Kg |
| High value of voltage range at 50Hz [V] | 254 |
| LRA HST [A] | 18.6 |
| Low value of voltage range at 50Hz [V] | 198 |
| Main winding resistance for single-phase compressors [Ohm] | 3.7 |

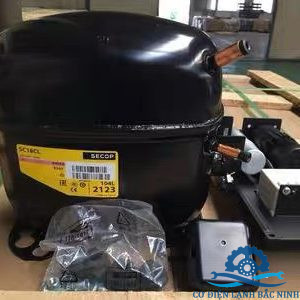

| Model number | SC18CL |
| Motor type | CSR |
| No. of phases (compressor) | 1 |
| Oil charge [cm3] | 600 |
| Oil type | POE |
| Process connection angle [°] | 37 |
| Process connection comments | Al-cap |
| Process connection diameter [mm] | 6.2 |
| Process connection material | Cu-plated steel |
| Refrigerant | R404A; R507 |
| Refrigerant charge [kg] [Max] | 1.3 |
| Suction connection angle [°] | 37 |
| Suction connection comments | Al-cap |
| Suction connection diameter [mm] | 10.2 |
| Swept volume [cm3] | 17.69 |
| Type designation | Compressor |
| Voltage 50Hz [V] | 220 |
| Voltage 50Hz [V] [Max] | 240 |
| Winding temperature short term [°C] [Max] | 135 |
| Winding temperature stat [°C] [Max] | 125 |
| • Bolt joint compressor 16 mm | 118-1917 |
| • Bolt joint compressor 16 mm Description | MOUNTING ACCESSORIES |
| • Bolt joint quantities 16 mm | 118-1918 |
| • Bolt joint quantities 16 mm Description | Bolt joint |
| • Cord relief | 103N1004 |
| • Cord relief Description | Cord relief SC |
| • Cover electrics | 103N2009 |
| • Cover electrics Description | Cover SC 220V |
| • Snap-on | 118-1919 |
| • Snap-on Description | Snap-on |
| • Starting capacitor | 117U5373 |
| • Starting capacitor Description | Start capacitor 80µF |
| • Starting device elec unit 1 | 117-7027 |
| • Starting device elec unit 1 Description | SC Relay |
| • Starting device elec unit 2 | 117-7040 |
| • Starting device elec unit 2 Description | SC Relay |
| • Starting device elec unit 3 | 117-7046 |
| • Starting device elec unit 3 Description | Electronic equipment assembly 80+10µF |
